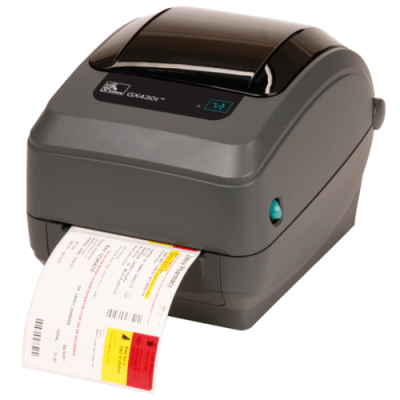

Zebra GX420d/420t/430t

Direct thermal and thermal transfer label printers

• Desktop label printer with improved functionality
• Either direct thermal printing at 8 dots/mm (203 dpi) or thermal transfer at 8 or 12 dots/mm (203 or 300 dpi)
• Maximum label width: 108 mm
• Maximum speed: 152 mm/sec.
• AC adaptor, USB cable and Windows drivers included

Description

User-friendliness, durability and reliability make GX series printers the best-in-class. They have a sleek and compact design and are the first choice in areas like healthcare, retail, catering, postal and parcel service, etc. All Zebra GX models are available as space-saving direct thermal versions (with smaller dimensions), or as combination of direct thermal and thermal transfer technologies and are the most convenient system for loading ink ribbons on the market.

A resolution of 8 dots/mm (203dpi) or 12 dots/mm (300dpi) guarantees professional printing results on labels of a width of up to 108 mm. A printing speed of up to 152 mm per second meets all your low- to medium-volume printing requirements.

The GX-series comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems.

Printer mechanisms and housing match perfectly: a robust double-walled housing made of shock-resistant ABS plastic protects against impacts and other mechanical influences. The housing surface is not only easy to clean – its grey colour naturally protects against visible stains. Various integrable functions such as adjustable media sensors, cutters and linerless printing make the G series printers a family of all-rounders that are prepared for the future.

The GX420s version comes with numerous security features that protect the printer as well as the consumables from unauthorised access and theft. The most important ones are a lockable casing and a print distance-meter to verify the actual consumption. Further general options available are the memory extensions, a real-time clock, dispensers and cutters.

Variants

Zebra GX430t rev2, 12 dots/mm (300 dpi), EPL, ZPL, multi-IF, print server (ethernet)

( etttgx43e2 – GX43-102420-000 )

label printer, thermal transfer, resolution: print, 12 dots/mm (300 dpi), media width (max.): 108 mm, speed (max.): 102 mm/s, multi-interface (RS232, USB), print server (internal 10/100), EPL, ZPL, incl.: cable (USB), power supply unit, power cable

Accessories

USB cable (A/B), 3m, white

( kabusb3m – 82216 )

USB cable, A/B, length: 3m, colour: white

parallel cable

( ettgxkabpar – 105850-025 )

Parallel interface cable (DB-25M to DB-25M)

USB cable (A/B), 2m, black

( usbkabelsw – USB2SW20 )

USB cable, A/B, length: 2m, colour: black

USB cable (A/B), 2m, white

( usbkabel – USB2WE20 )

USB cable, A/B, length: 2m, colour: white

Zebra Cleaning Pens for Printhead

( zg10595003 – 105950-035 )

Cleaning pens for Zebra printheads (12 pcs)

Zebra connection cable, RS-232

( ettnser – G105950-054 )

Connection cable, RS-232, null modem, DB-9 to DB-9, 1.8 m

Zebra parallel cable

( z105850-001 – 105850-001 )

Parallel Interface Cable 6' (Centronics)

Zebra Platen Roller Kit

( zp1027135-039 – P1027135-039 )

Platen Roller Kit, for Zebra GK/GX420d Rev. 2

Zebra Platen Roller Kit

( zp1027135-040 – P1027135-040 )

Platen Roller Kit, for Zebra GK/GX420t, GX430t

Zebra power cord, C13, IT

( syacabit – 50-16000-671R )

Power cord, C13, Italy, length: 1.8 m, colour: black

Zebra power supply, EU, US

( z1079903-026 – P1079903-026 )

Power supply, 75W, 24V, incl.: power cord (EU, US), fits for: ZD410D, ZD420 series, ZD620 series, GX420D, GX420T, GX430T, ZD500

Zebra printhead GX/GK420d, 8 dots/mm (203dpi)

( etd668 – 105934-037 )

Printhead (spare) for Zebra label printer GX/GK420d, resolution 8 dots/mm (203dpi)

Zebra printhead, 12 dots/mm (300dpi)

( etd670 – 105934-039 )

Printhead (spare) for Zebra label printer GX430t, ZD500, resolution 12 dots/mm (300dpi)

Zebra printhead, 8 dots/mm (203dpi)

( etd669 – 105934-038 )

Printhead (spare) for Zebra label printer GX/GK420t, ZD500, resolution 8 dots/mm (203dpi)

Zebra RS-232 cable

( zg105850 – G105850-003 )

RS-232 Interface Cable - 6' (DB-9 to DB-9)

Zebra Service

( ettocegd-5 – Z1AE-GSER-5C0 )

Zebra OneCare Essential, 5 years, purchased within 30 days, with comprehensive coverage, fits for: G-Serie

Zebra service

( ettz1a5desk-3 – Z1A5-DESK-3 )

Technical support and software contract, desktop printer, 8x5, 3 year term

Zebra Service, G-series

( ettoceg-3 – Z1AE-GSER-3C0 )

Zebra OneCare, Essential, Purchased within 30 days of Printer, 5 Day Turnaround Time EMEA, G-Series, 3 Years, Comprehensive

Zebra USB cable

( ettucab – 105850-006 )

USB interface cable - 6’ (A to B)
